VANTECH / Drawing-Based CNC Machining
Custom CNC Machined Mounting & Adapter Plates
VANTECH provides drawing-based CNC machining for mounting plates, adapter plates and related equipment components. Our portfolio includes drilled plates, open-center plates and slotted mounting profiles.
When a plate connects two assemblies, the hole pattern and reference surfaces need to work together. Send the drawing with its datum references, critical hole positions and surface requirements clearly identified.
Component Examples

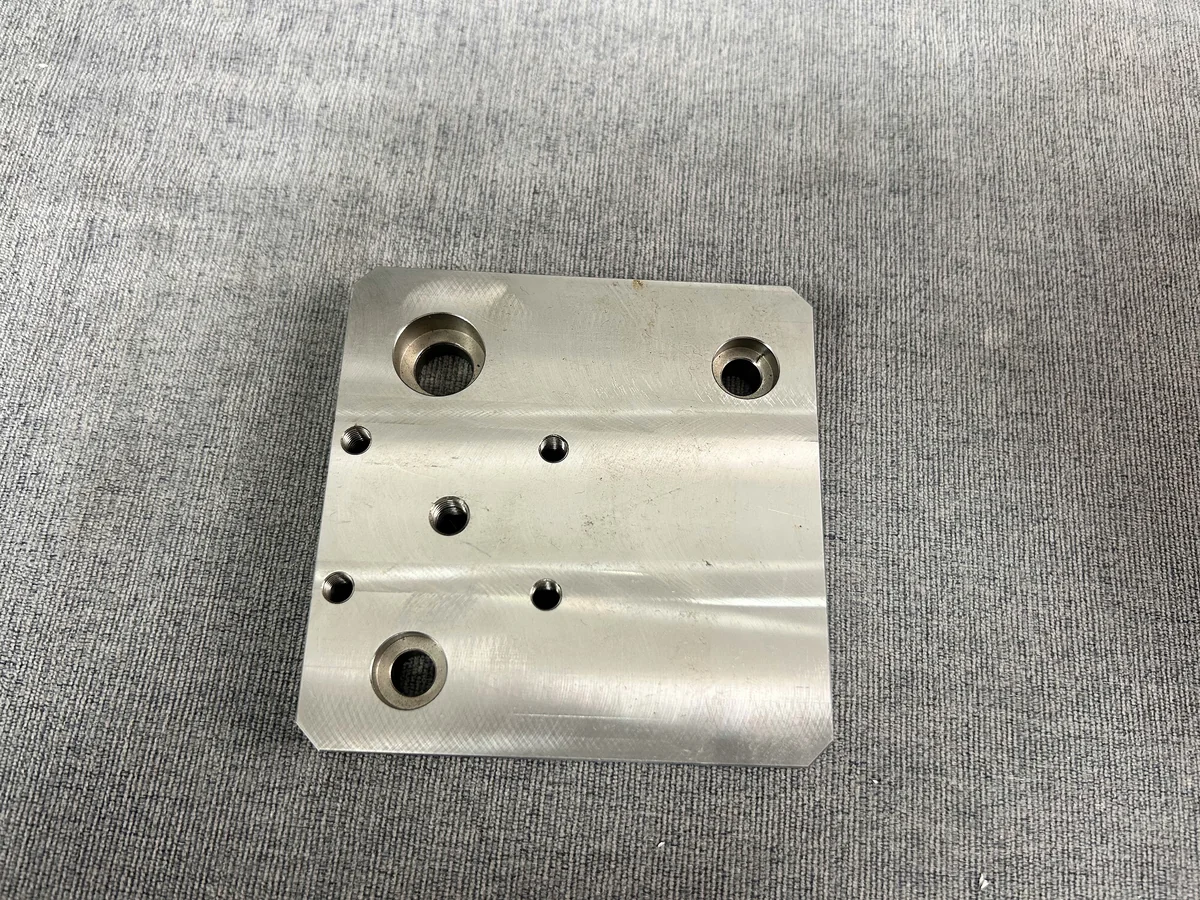

Compact Mounting Plates
A rectangular profile with counterbored holes, smaller bores and rounded edges.
Windowed Mounting Plates
A large central opening with drilled holes and stepped perimeter details.

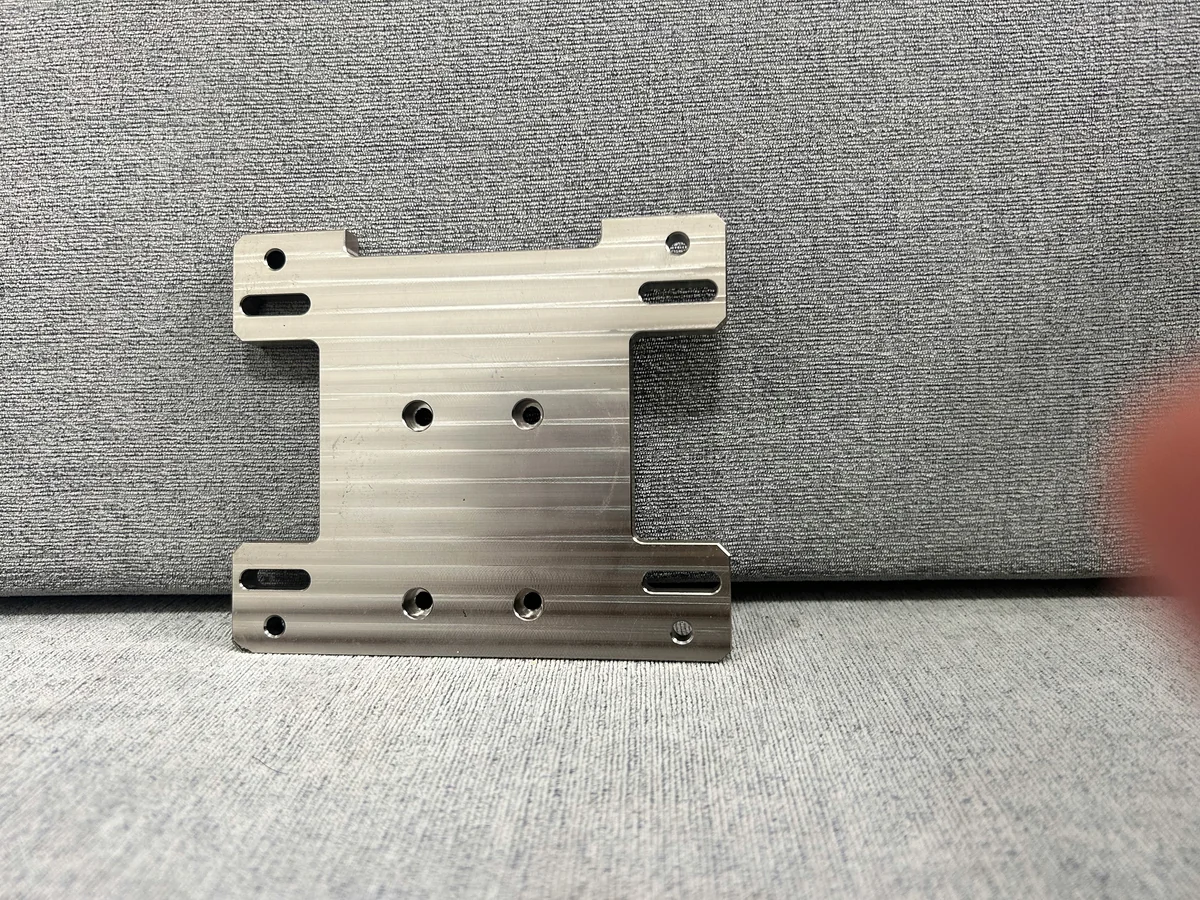

Slotted Bridge Plates
A bridge-shaped profile with elongated end slots and a drilled mounting pattern.
Examples illustrate component geometry. Material, dimensions, tolerances and finish are specified for each project.
VANTECH / Product Close-Up
CNC Machined Windowed Plate — A Closer Look
This component from VANTECH’s product portfolio combines a rectangular opening, multiple hole sizes and a stepped outer profile. These photographs show the physical part from three angles.

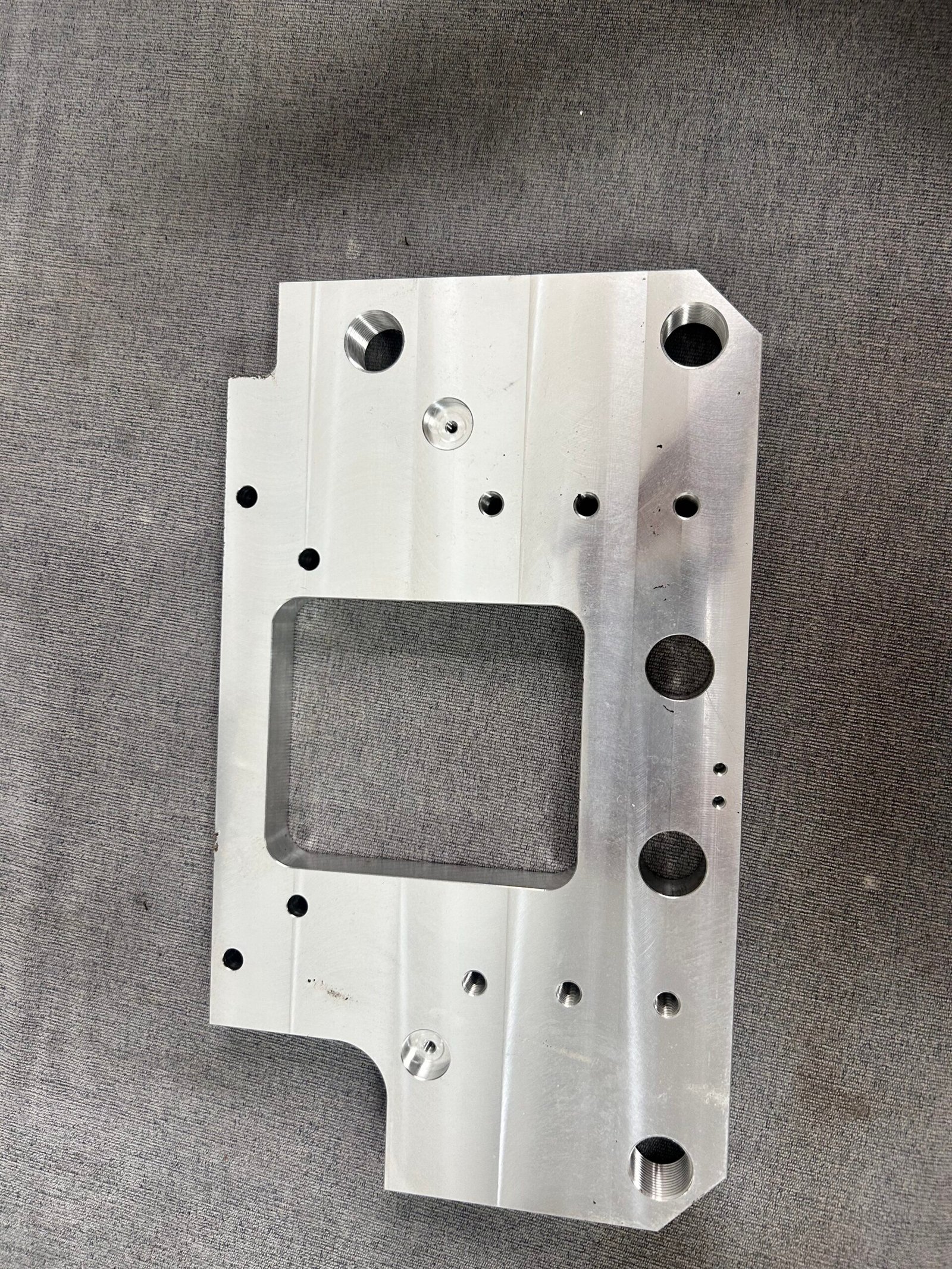

Overall geometry
The top view shows the central opening, surrounding hole pattern and perimeter cutouts. Machining marks remain visible across the face.

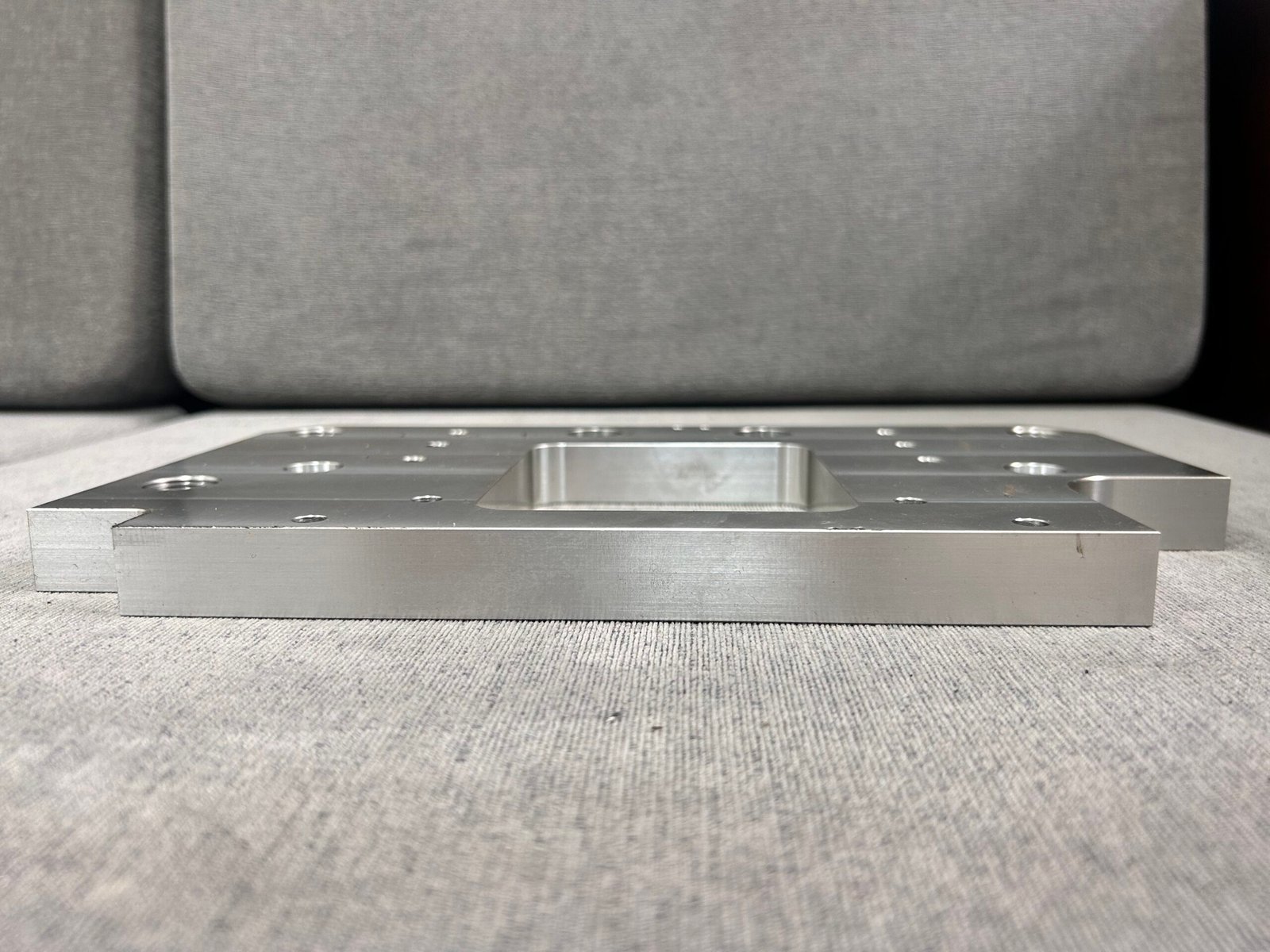

Thickness and opening
The side view reveals the plate’s thickness and the internal walls of the rectangular opening, adding detail that a top view alone cannot show.

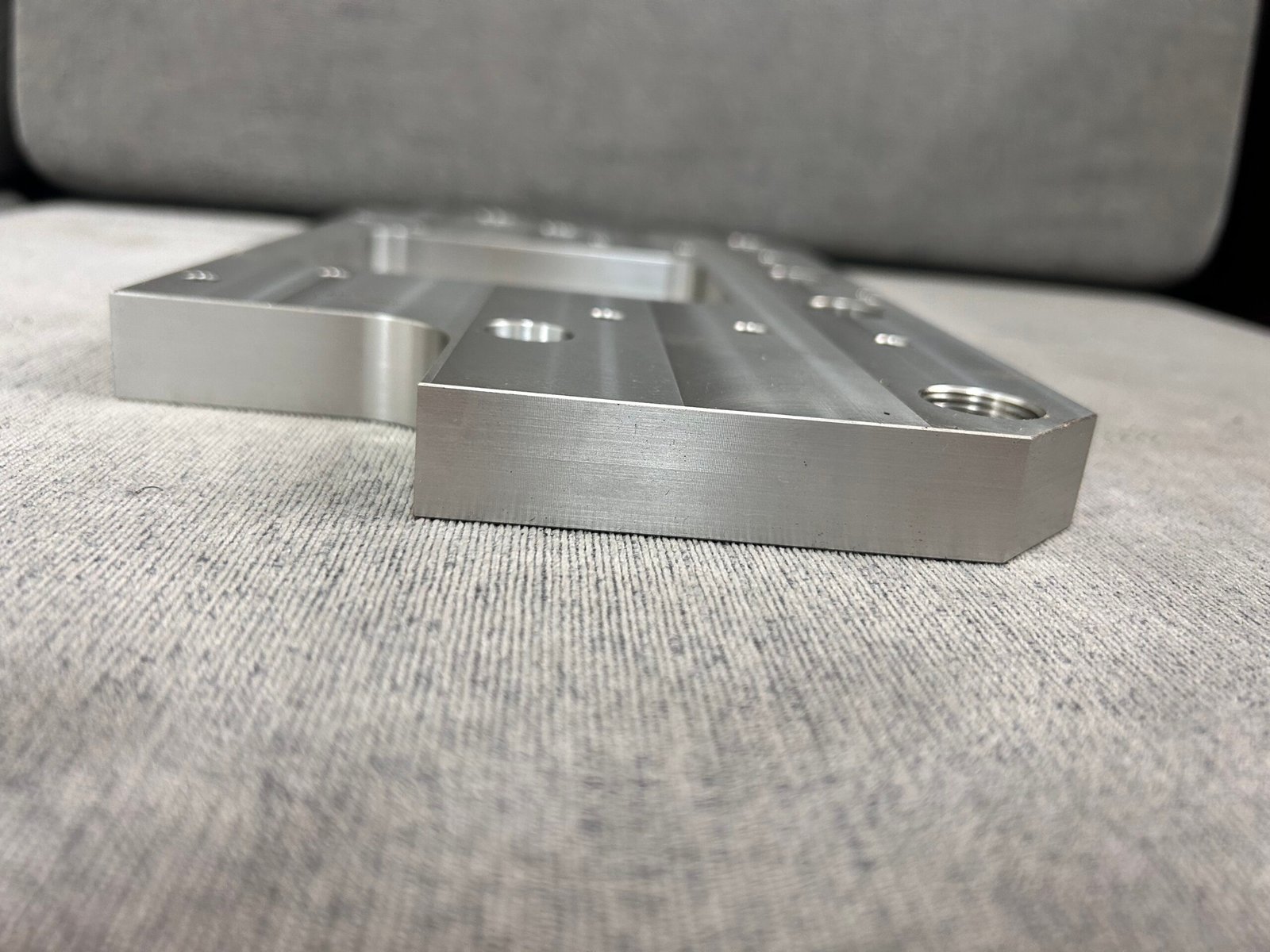

Threaded features and edge details
The angled view highlights a threaded hole, the perimeter step and the machined side face.
Planning a Similar Mounting or Adapter Plate?
For a quotation, send your drawing and identify the mating interfaces, hole positions, thread specifications and any flatness or parallelism requirements. Include the material grade, quantity, surface finish and required delivery date.
VANTECH will review the machining and inspection requirements against your drawing.
Details That Matter for Your Plate
Hole patterns
Provide hole coordinates, diameters, thread details and counterbore or countersink requirements.
Reference surfaces
Identify the assembly datum, plate thickness and any flatness or parallelism requirements.
Openings & adjustment
Define window dimensions, slot geometry and clearance for the components passing through or mounting to the plate.
Mounting & Adapter Plate Project Details
| Component type | Mounting plates, adapter plates, windowed plates and slotted equipment plates. |
|---|---|
| Machined features | Profiles, openings, hole patterns, counterbores, slots and stepped faces as specified in the drawing. |
| Material | State the required material and grade. Selection and availability are reviewed against the project requirements. |
| Dimensions & tolerances | Provide overall dimensions, thickness, datum references and critical hole-position tolerances. |
| Surface finish | Specify the required finish and identify contact faces or locating features with special requirements. |
| Quantity & delivery | Include quantities by part number and your target delivery date for quotation. |
Connect Two Interfaces with One Clear Drawing
For an adapter plate, identify both mating interfaces and use clear datum references for the hole patterns. Where a plate supports equipment or fixture components, show the mounting orientation and any clearance restrictions that affect the design.
Specify the Features That Control Fit
Highlight hole locations, bore sizes, plate thickness and any flatness or parallelism requirements that affect assembly. If you need a dimensional report for selected features, identify them during quotation so the inspection scope can be agreed.
Frequently Asked Questions
Can the plate have a custom hole pattern?
Yes. Provide a drawing that defines the hole positions, sizes and thread details, together with the datum references used to locate them.
How do I specify flatness or parallelism?
State the required tolerance and the surfaces it applies to on the drawing. These requirements are reviewed with the material, plate size and thickness; no single tolerance applies to every plate.
Can I request an adapter between two existing assemblies?
Send the mating-interface drawings or a complete adapter-plate drawing. Identify the critical mounting points and any clearance requirements for review.
What should I send for a repeat-order quotation?
Include the part number, current drawing revision, quantity and any changes to material, finish or inspection requirements.
Request a Quote for Your Mounting Plate
Share your plate drawing, mounting pattern and project requirements with VANTECH.
For a useful quotation, please include:
- Part drawing and revision; a 3D model if available.
- Required material and grade.
- Quantity for each part or variant.
- Critical dimensions, tolerances and inspection requirements.
- Surface finish and appearance requirements.
- Required delivery date and destination.
Email: info@vantechcncproducts.com
WhatsApp: +86 180 5148 3791
Suzhou Vantech Metal Products Co., Ltd.
Mounting and Workholding Adapter Plate Applications
An adapter plate connects interfaces with different mounting patterns. For equipment mounting, identify both mating parts, the mounting orientation and the clearance required around fasteners and adjacent components.
Locating and Clearance Features
For a workholding adapter plate, show how the plate locates against the fixture or machine interface. Clearly distinguish locating features from clearance holes and identify the datum surfaces used to control the hole pattern. Clamping forces and structural suitability should be established in the design before machining.
Prepare Your Drawing for Quotation
Provide the drawing revision, material grade, plate thickness, hole and thread details, and any specified flatness or parallelism requirements. Include the mating-interface drawing when it helps clarify fit. VANTECH reviews manufacturability and inspection requirements against the supplied drawings.
